L9110 fan module example

by shedboy71

In this example we connect an Arduino to a L9110 fan module. This is a commonly found, basic low cost module which consists of an L9110 chip and a small motor attached. You need 4 connections between the arduino and the module. VCC, GND , INA and INB.

L9110 fan module

L9110 fan module

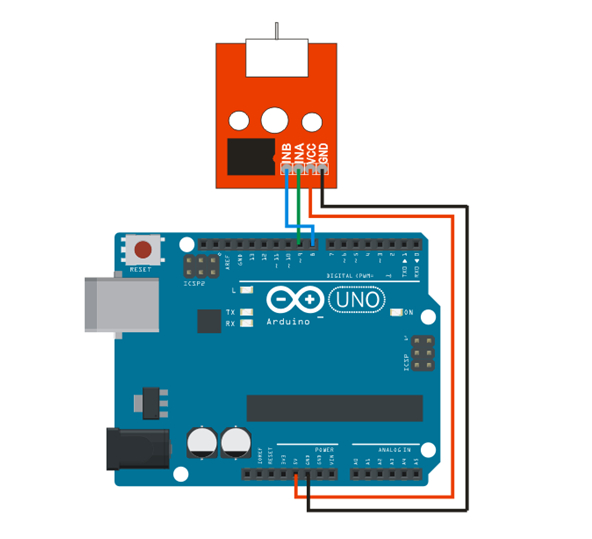

Lets look at how to connect the Arduino to the module

1

Code

No libraries needed in this example, fairly basic example this one, upload the sketch and the fan will just run

int INA = 9;
int INB = 8;

void setup()
{
pinMode(INA,OUTPUT);
pinMode(INB,OUTPUT);
}

void loop()
{
digitalWrite(INA,LOW);
digitalWrite(INB,HIGH);
delay(1000);
}



Link
L9110 Fan Module for Arduino
