Arduino Uno and GUVA-S12SD UV Sensor example

by shedboy71

The GUVA-S12SD UV Sensor chip is suitable for detecting the UV radiation in sunlight. It can be used in any application where you want monitor for the amount of UV light and is simple to connect to any microcontroller. I recently noticed that some sellers had little modules for this sensor at a reasonable price so decided to purchase one

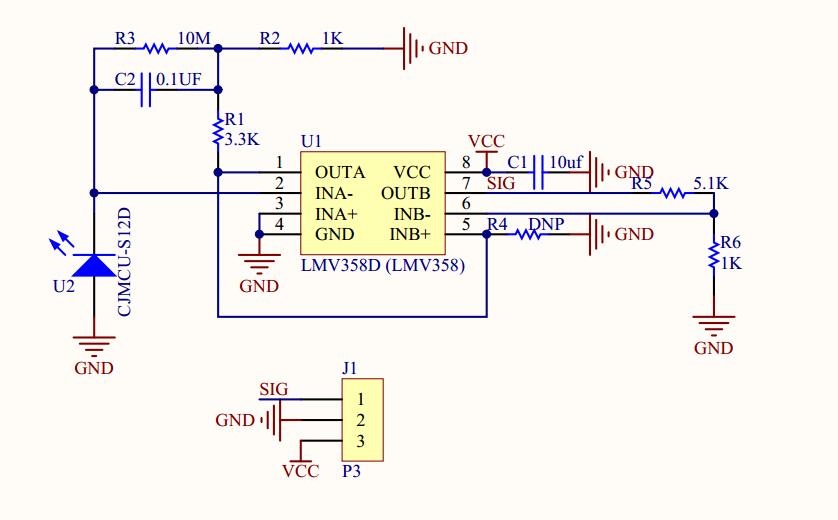

The module, with a typical UV detection wavelength of 200 – 370nm, outputs a calibrated analog voltage which varies with the UV light intensity so basically all you need to do is connect this to an ADC input and read in the value.

This value ties in with the UV index, this looks something like this



Connection

The connections are straightforward and described below, I used 5v from my Arduino.

1. GND: 0V (Ground)
2. VCC: 3.3V to 5.5V
3. OUT: 0V to 1V ( 0 to 10 UV Index)



arduino and GUVAS12SD

arduino and GUVAS12SD





Code

Simple code example that reads the value at A0 and outputs the results via the serial monitor

sensorVoltage = sensorValue/1024*5.0;

[codesyntax lang=”cpp”]

void setup()
{
  Serial.begin(9600);
}

void loop()
{
  float sensorVoltage;
  float sensorValue;

  sensorValue = analogRead(36);
  sensorVoltage = sensorValue/1024*5.0;
  Serial.print("sensor reading = ");
  Serial.print(sensorValue);
  Serial.println("");
  Serial.print("sensor voltage = ");
  Serial.print(sensorVoltage);
  Serial.println(" V");
  delay(1000);
}

[/codesyntax]



Testing

Open the serial monitor and look at the readings

sensor reading = 46.00
sensor voltage = 0.15 V
sensor reading = 46.00
sensor voltage = 0.15 V
sensor reading = 46.00
sensor voltage = 0.15 V
sensor reading = 46.00
sensor voltage = 0.15 V
sensor reading = 46.00
sensor voltage = 0.15 V

If you look at the image earlier that corresponds to UV index of 0



Links

keyestudio GUVA-S12SD 3528 Ultraviolet Sensor for Arduino
