DHT11 Temperature and Humidity Sensor example

In this example we will show a basic example of connecting a DHT11 Temperature and Humidity Sensor to your Arduino. This is a very nice little, low cost sensor which requires only a pull up resistor to VDD. This can easily be constructed on a mini bread board and then joined up to your Arduino. using some connecting cables

The DHT11 digital temperature and humidity sensor is a composite Sensor contains a calibrated digital signal output of the temperature and humidity. Application of a dedicated digital modules collection technology and the temperature and humidity sensing technology, to ensure that the product has high reliability and excellent long-term stability. The sensor includes a resistive sense of wet components and an NTC temperature measurement devices, and connected with a high performance 8-bit microcontroller

The DHT sensors are made of two parts, a capacitive humidity sensor and a thermistor. There is a chip inside that does some a/d conversion and outputs a digital signal with the temperature and humidity.

Schematic

Arduino and DHT11 scematic

Arduino and DHT11 scematic

Connections

Here is the breadboard layout

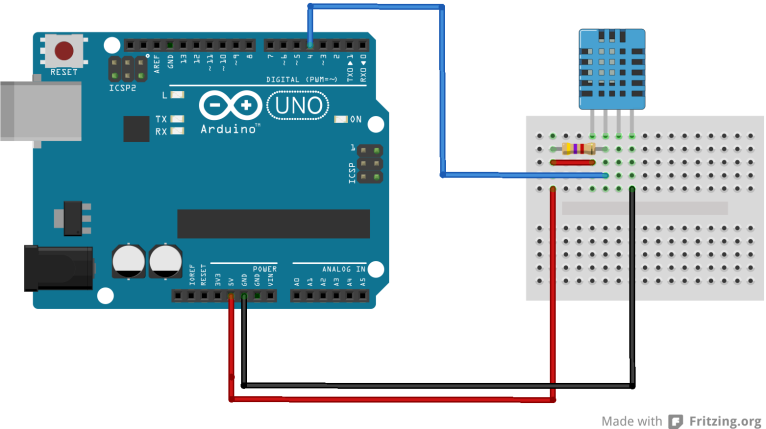

Arduino and DHT11 breadboard

Arduino and DHT11 breadboard

Code

You will need the DHT11 library from the DHT library.

Download, extract and copy this to your Arduino libraries folder location. This is a simple example which outputs the humidity and temperature, place your fingers on the DHT11 and you will see the readings go up and then remove them and the readings will gradually decrease



#include <dht11.h>

dht11 DHT;
//Pin 4 of Arduino to Data of DHT11
#define DHT11_PIN 4

void setup()
{
Serial.begin(9600);
int check;
Serial.print(“DHT11 STATUS – \t”);
check = DHT.read(DHT11_PIN);
//check status
switch (check)
{
case DHTLIB_OK:
Serial.print(“OK\n”);
break;
case DHTLIB_ERROR_CHECKSUM:
Serial.print(“Checksum error\n”);
break;
case DHTLIB_ERROR_TIMEOUT:
Serial.print(“Timeout error\n”);
break;
default:
Serial.print(“Unknown error\n”);
break;
}
}

void loop()
{

//humidity and temperature output
Serial.print(“Humidity is “);
Serial.print(DHT.humidity,1);
Serial.print(“\n”);
Serial.println(“Temperature is “);
Serial.println(DHT.temperature,1);

delay(1000);
}

Output

Upload the sketch above and open the Serial Monitor window

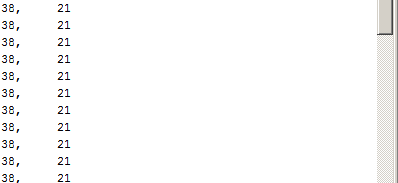

dht11 serial outtput results

dht11 serial outtput results

Parts List

Label	Part Type
DHT1	DHT11 Humitidy and Temperature Sensor
Part1	Arduino Uno (Rev3)
R1	4.7k Ω
